Product – Transceivers – DAC – QSFP28

Direct Attach Cables

QSFP28 Direct Attach Cables

100GBase Quad Small Form Factor Pluggable

QSFP28 DAC are hot-pluggable cables used for 100Gb data transmission. The term “QSFP” stands for Quad Small Form Factor Pluggable, a reference to the 4 independent 25Gb channels within the connectors. These cables utilize copper COAX wiring and are an ideal low-cost option for short reach applications. QSFP28 DAC are ideal for high-speed transmission in data centers, cloud computing, and hyper-scale transmission and are compliant with RoHS, IEEE, and MSA standards.

Square-500x500_transceivers_DAC__QSFP.447

Square-500x500_transceivers_DAC__QSFP.448

Features

Up to 100 GBd bi-directional data links
Hot-pluggable QSFP28 footprint
4 independent duplex 25Gbs channels
AC coupled inputs and outputs
100 Ohm differential impedance
Metal housing for superior EMI performance
Single power supply 3.3V
Operating temperature range: 0°C to 70°C

Applications

100GBASE Ethernet
Serial Data Transmission

Compliance

QSFP28 MSA
IEEE802.3bj
Infiniband EDR, QDR
RoHS Compliant

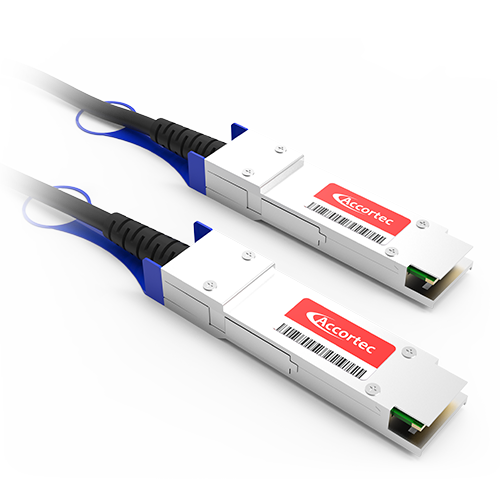

Square-500x500_transceivers_DAC__QSFP28_50GB_breakout.449

Square-500x500_transceivers_DAC__QSFP28_50GB_breakout.450

Features

2 independent duplex 50Gbs channels
Hot-pluggable QSFP28 footprint
AC coupled inputs and outputs
100 Ohm differential impedance
Metal housing for superior EMI performance
Single power supply 3.3V
Operating temperature range: 0°C to 70°C

Applications

100GBASE Ethernet
Serial Data Transmission
Fiber Channel

Compliance

QSFP28 SFF-8665 MSA
IEEE802.3bj
Infiniband EDR, QDR
RoHS Compliant

Square-500x500_transceivers_DAC__QSFP28_25GB_breakout.454

Square-500x500_transceivers_DAC__QSFP28_25GB_breakout.456

Square-500x500_transceivers_DAC__QSFP28_25GB_breakout.455

Features

4 independent duplex 25Gbs channels
Hot Pluggable
AC coupled inputs and outputs
100 Ohm differential impedance
Metal housing for superior EMI performance
Single power supply 3.3V
Operating temperature range: 0°C to 70°C

Applications

100GBASE Ethernet
Serial Data Transmission
Networking, Storage, Fiber Channel

Compliance

QSFP28 MSA
SFP28 MSA
Infiniband EDR, QDR, DDR
RoHS Compliant
