Product – Transceivers – QSFP-DD

Transceivers

Transceivers - QSFP-DD

Quad Small Form Factor Pluggable Double Density

QSFP-DD is a new module and cage/connector system similar to current QSFP, but with an additional row of contacts providing for an eight lane electrical interface. The data rate of each channel can reach 25Gb/s through NRZ modulation technology, realizing 200G network transmission. Also, the data rate of each channel can reach 50Gb/s by the PAM4 modulation technology, achieving 400G network transmission, which is suitable for high-performance computing data center and cloud network. These modules utilize MTP and LC connectors and are compliant with RoHS, IEEE, and QSFP-DD MSA standards.

Features

Up to 425Gb/s aggregate bit rates
Double rate 106.25Gp/s PAM4 per channel
8x 53.125Gb/s electrical interface (400GAUI-8)
Hot-pluggable QSFP-DD footprint
Four parallel optical lane design
MPO/MTP-12 connector
Built-in digital diagnostic function
Up to 500m over singlemode fiber
12-watt max power consumption
Operating temperature range: C-Temp: 0°C to 70°C

Applications

400G Ethernet
Infiniband

Compliance

QSFP-DD MSA
IEEE 802.3bs
RoHS Compliant

Features

Up to 425Gb/s aggregate bit rates
Double rate 106.25Gp/s PAM4 per channel
8x 53.125Gb/s electrical interface (400GAUI-8)
Hot-pluggable QSFP-DD footprint
Four parallel optical lane design
MPO/MTP-12 connector
Built-in digital diagnostic function
Up to 2km over singlemode fiber
12-watt max power consumption
Operating temperature range: C-Temp: 0°C to 70°C

Applications

400G Ethernet
Infiniband

Compliance

QSFP-DD MSA
IEEE 802.3bs
RoHS Compliant

Features

Up to 425Gb/s aggregate bit rates
Double rate 106.25Gp/s PAM4 per channel
8x 53.125Gb/s electrical interface (400GAUI-8)
Hot-pluggable QSFP-DD footprint
4x CWDM lanes of MUX/DEMUX
LC duplex connector
Built-in digital diagnostic function
Up to 2km over singlemode fiber
12-watt max power consumption
Operating temperature range: C-Temp: 0°C to 70°C

Applications

400G Ethernet
Infiniband

Compliance

QSFP-DD MSA
IEEE 802.3bs
RoHS Compliant

Features

Up to 425Gb/s aggregate bit rates
Double rate 106.25Gp/s PAM4 per channel
8x 53.125Gb/s electrical interface (400GAUI-8)
Hot-pluggable QSFP-DD footprint
4x CWDM lanes of MUX/DEMUX
LC duplex connector
Built-in digital diagnostic function
Up to 10km over singlemode fiber
12-watt max power consumption
Operating temperature range: C-Temp: 0°C to 70°C

Applications

400G Ethernet
Infiniband

Compliance

QSFP-DD MSA
IEEE 802.3bs
RoHS Compliant

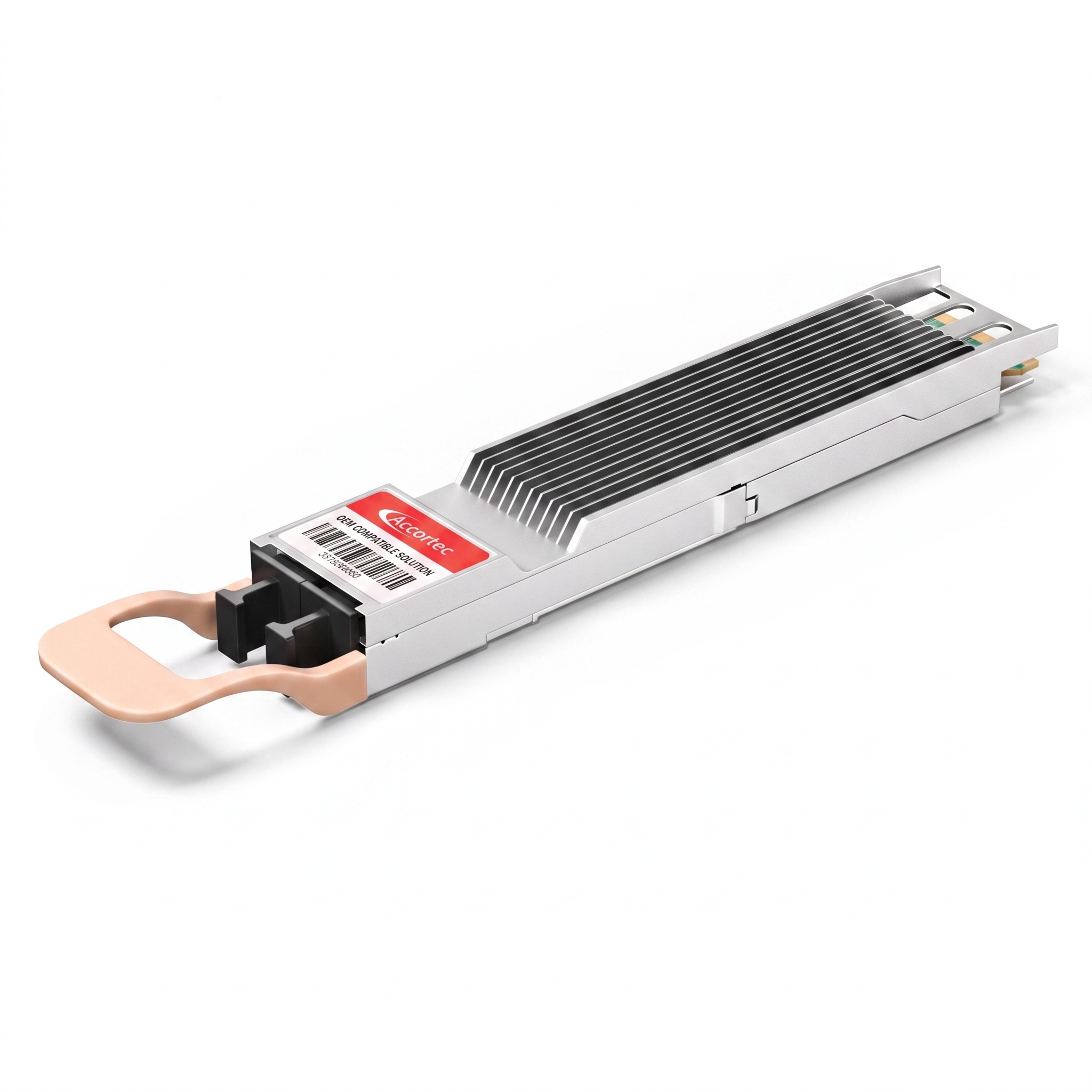

Features

Up to 850Gb/s aggregate bit rate
8x 106.25Gb/s PAM4 electrical interface (800GAUI-8)
OSFP form factor
850nm VCSEL wavelength
2x MPO-12 APC connector
Native breakout: 2x400G VR4 / 4x200G / 8x100G
Up to 50m over MMF OM4/OM5
14-17W power consumption
Operating temperature range: 0°C to 70°C

Applications

Very-short intra-rack
Spectrum-X / short ToR

Compliance

800GBASE-VR8
OSFP MSA
CMIS 5.x
RoHS

Features

Up to 850Gb/s aggregate bit rate
8x 106.25Gb/s PAM4 electrical interface (800GAUI-8)
OSFP form factor
850nm VCSEL wavelength
2x MPO-12 APC (or MPO-16) connector
Native breakout: 2x400G SR4
Up to 100m over MMF OM4/OM5
14-17W power consumption
Operating temperature range: 0°C to 70°C

Applications

InfiniBand NDR
RoCEv2 ToR

Compliance

800GBASE-SR8
OSFP MSA
CMIS 5.x
RoHS

Features

Up to 850Gb/s aggregate bit rate
8x 106.25Gb/s PAM4 electrical interface (800GAUI-8)
OSFP form factor
1310nm wavelength
2x MPO-12 APC (or MPO-16) connector
Native breakout: 2x400G DR4 / 4x200G / 8x100G
Up to 500m over SMF
14-17W power consumption
Operating temperature range: 0°C to 70°C

Applications

Spine-leaf
Interops with 400G DR4 endpoints

Compliance

800GBASE-DR8
OSFP MSA
CMIS 5.x
RoHS

Features

Up to 850Gb/s aggregate bit rate
8x 106.25Gb/s PAM4 electrical interface (800GAUI-8)
OSFP form factor
1310nm wavelength
2x MPO-12 APC connector
Native breakout: 2x400G
Up to 2km over SMF
14-17W power consumption
Operating temperature range: 0°C to 70°C

Applications

Extended-reach DR variant

Compliance

800GBASE-DR8 (ext.)
OSFP MSA
CMIS 5.x
RoHS

Features

Up to 850Gb/s aggregate bit rate
8x 106.25Gb/s PAM4 electrical interface (800GAUI-8)
OSFP form factor
1310nm CWDM4 wavelength
2x duplex LC connector
Native breakout: 2x400G FR4
Up to 2km over SMF
14-17W power consumption
Operating temperature range: 0°C to 70°C

Applications

Most fiber-efficient 800G DCI
2x independent 400G FR4

Compliance

800GBASE-FR8 / 2xFR4
OSFP MSA
CMIS 5.x
RoHS

Features

Up to 850Gb/s aggregate bit rate
8x 106.25Gb/s PAM4 electrical interface (800GAUI-8)
OSFP form factor
1310nm CWDM4 wavelength
2x duplex LC connector
Native breakout: 2x400G LR4
Up to 10km over SMF
14-17W power consumption
Operating temperature range: 0°C to 70°C

Applications

Metro / campus DCI

Compliance

800GBASE-LR8 / 2xLR4
OSFP MSA
CMIS 5.x
RoHS

Features

4x 200G PAM4 (800G aggregate)
OSFP224 form factor
1311nm wavelength
MPO-12 APC connector
Up to 500m

Applications

ConnectX-8 / ConnectX-9 SuperNIC
InfiniBand XDR

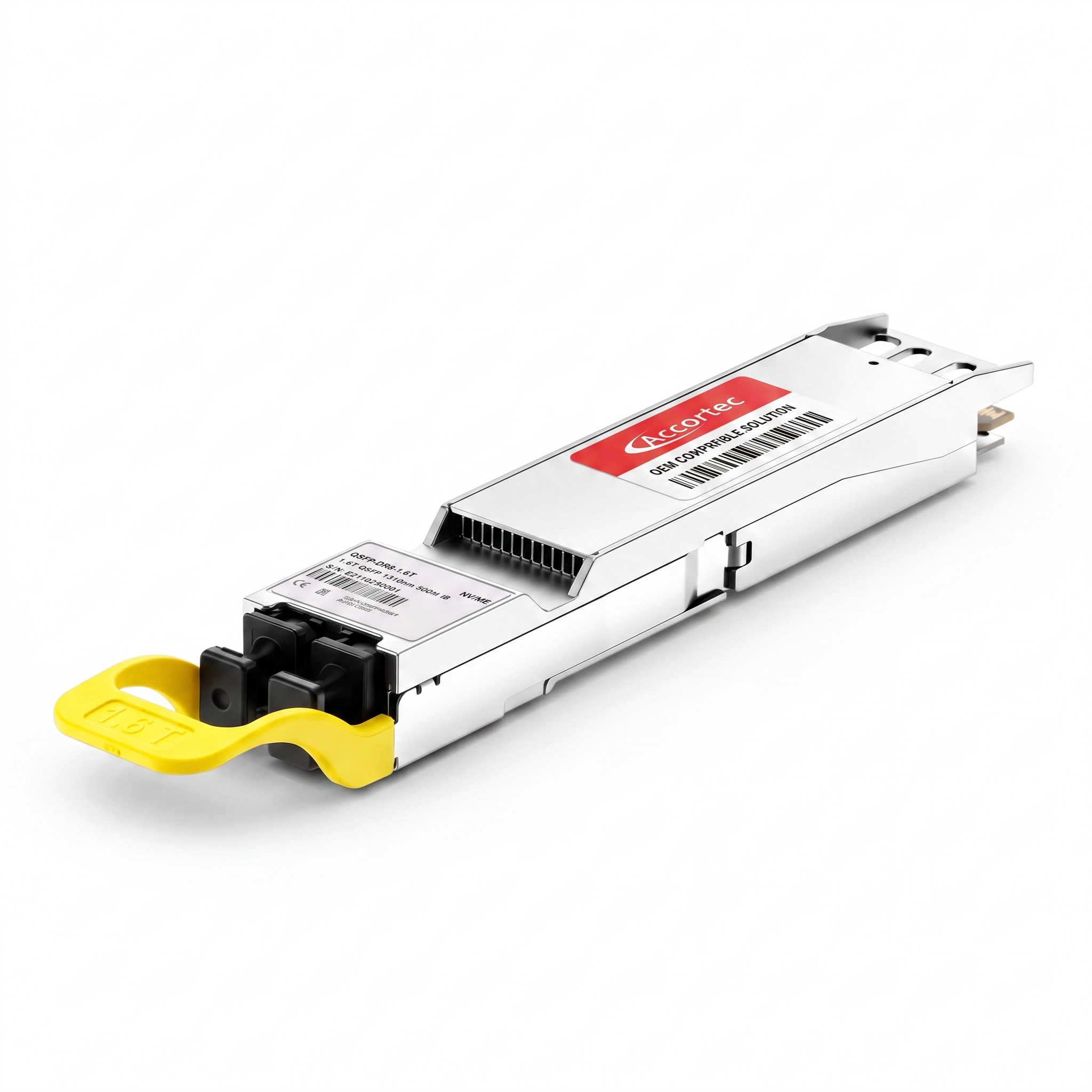

Features

Aggregate 1.6Tb/s
8x 200G PAM4 electrical interface (8x212G SerDes)
OSFP224 form factor
1310nm wavelength
2x MPO-12 APC (2xDR4) / MPO-16 (DR8) connector
Native breakout: 2x800G DR4
Up to 500m over SMF
26-30W power consumption
Operating temperature range: 0°C to 70°C

Applications

Twin-port
1.6T spine to 2x 800G leaf

Compliance

800GBASE-DR4 x2 (IEEE 802.3dj)

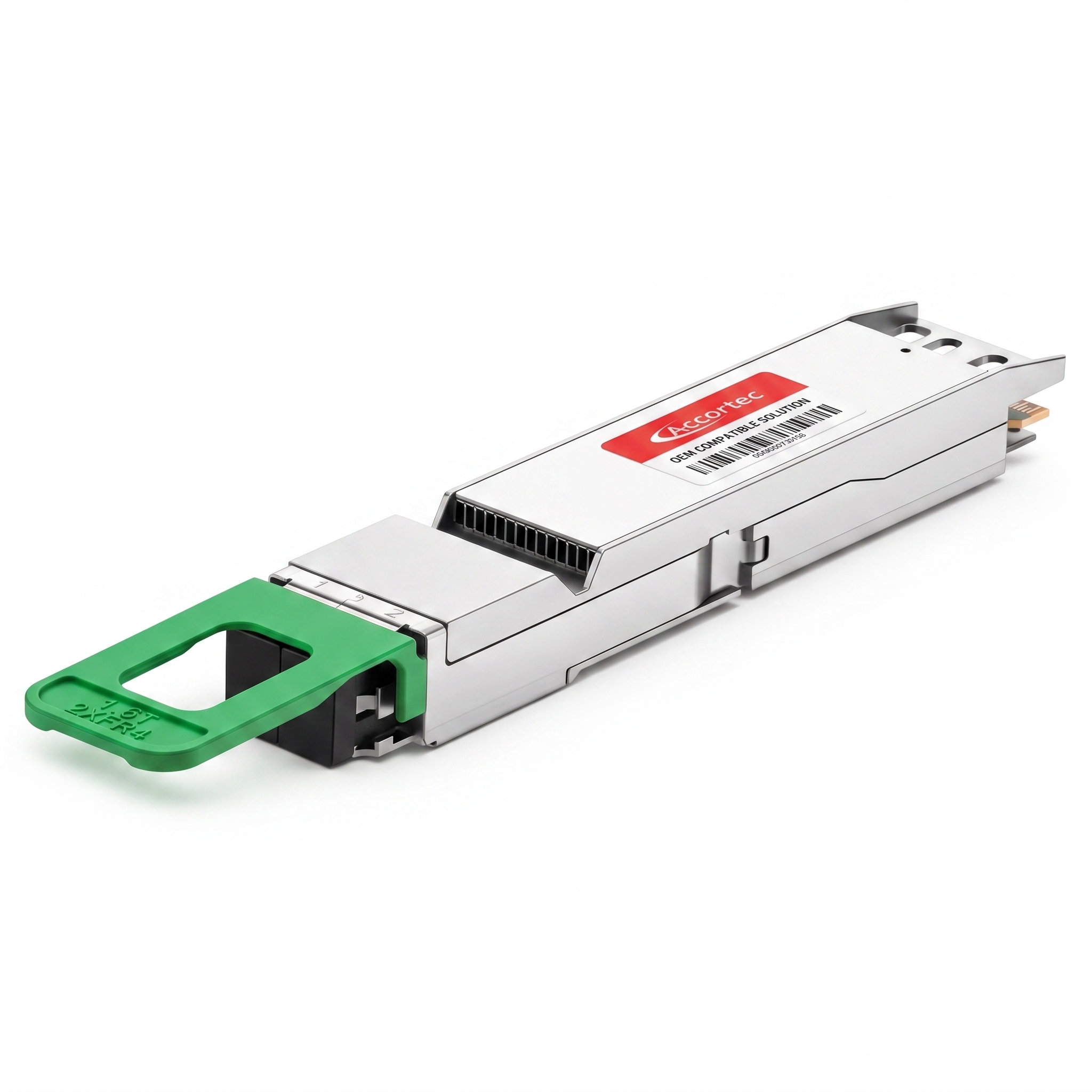

Features

Aggregate 1.6Tb/s
8x 200G PAM4 electrical interface (8x212G SerDes)
OSFP224 form factor
1310nm CWDM4 wavelength
2x duplex LC connector
Native breakout: 2x800G FR4
Up to 2km over SMF
26-30W power consumption
Operating temperature range: 0°C to 70°C

Applications

3nm DSP
IHS finned for air-cooled Quantum-X800

Compliance

IEEE 802.3dj

Features

Aggregate 1.6Tb/s
8x 200G PAM4 electrical interface (8x212G SerDes)
OSFP224 form factor
1310nm CWDM4 wavelength
2x duplex LC connector
Native breakout: 2x800G LR4
Up to 10km over SMF
26-30W power consumption
Operating temperature range: 0°C to 70°C

Applications

Metro / long-campus DCI

Compliance

IEEE 802.3dj
